- Place of Origin: ZHANG QIU
- Brand Name: diesel generator
- Model Number: 190

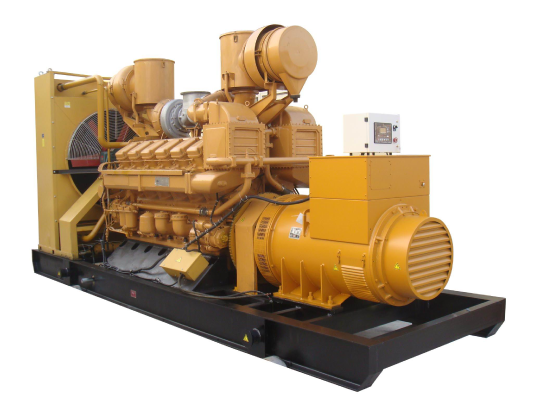

For 190 series genset, we adopt the 190 series engine as power matching alternator with high quality and high efficiency. The power ranges from 400kw to 1000kw. They can be built into a power station with two or more gensets. 190 series diesel generator is a kind of high speed and powerful diesel engine with good quality and wide applications. With continuous improvement and adoption of the technology result of modern internet –combustion generator, this generator possesses characters of advanced technique, compact in structure, speedy start, easy to operate, convenient to maintain and suitable to work in harsh environment etc.
Main Technical Parameter
Cylinder diameter | 190mm |
Stroke | 210mm |
Compression ratio | 14:1 |
Fuel oil consumption(full load) | ≤209.4g/kw•h |
Lubricant oil consumption | ≤1.6 g/kw•h |
Rated speed | 1500r/min |
Operation mode | Long-distance electronic, manual control |
Starting Mode | Pneumatics motor,electric motor |
Aspiration mode | Direct injection, turbo charging |
Lubricant Mode | Pressure and splash lubricant |
Exhaust temperature | ≤600℃ |
Outlet water temperature | ≤85℃ |
Engine oil temperature(in oil pan) | ≤90℃ |
Pressure of lubricant oil in main oil pass | 392-784kpa |
Crankshaft rotation | counterclockwise (face output terminal) |
- Place of Origin: ZHANG QIU
- Brand Name: diesel generator
- Model Number: 190
Main technical specification
Mode No. | Rat-ed pow-er | Diesel engine type | Poweof diesel engine(kw) | Rated speed (r/min) | SIZE | NW |
LN500GF | 500 | G6190ZLC | 594 | 1500 | 6000×1700×2680 | 9800 |
LN500GF | 500 | Z12V190BD-2 | 588 | 1000 | 5930×2040×2780 | 11800 |
LN500GF | 500 | Z12V190BD2-2 | 588 | 1000 | 5930×2040×2780 | 11800 |
LN600GF | 600 | Z12V190BD1-1 | 735 | 1200 | 5930×2040×2780 | 12000 |
LN630GF | 630 | Z12V190BD2 | 882 | 1500 | 6020×2040×2780 | 12000 |
LN630GF | 630 | Z12V190BD2 | 882 | 1500 | 5930×2040×2780 | 12000 |
LN700GF | 700 | Z12V190BD2 | 882 | 1500 | 5930×2040×2780 | 12500 |
LN700GF | 700 | Z12V190BD3 | 882 | 1500 | 5930×2040×2780 | 12500 |
LN800GF | 800 | Z12V190B | 882 | 1500 | 6305×2040×2780 | 12500 |
LN1000GF | 1000 | G12V190ZL | 900 | 1500 | 6305×2040×2780 | 13600 |
