- Place of Origin: Shandong Jinan
- Brand Name: gas generator
- Model Number: LH-400GFY,LH-500GFY
Shale gas is exploited from shale bed; its main part is located in dark mud shale or high carbon clay shale, it is a kind of natural gas which adsorbs to or dissociates in mud stone, high carbon mudstone, shale and silt shale etc. Its main content is alkane. Among its compositions the majority is methane. Ethane, propane and butane take a little proportion; it also contains Hydrogen sulfide (H2S), carbon Dioxide (CO2), Nitrogen (N2), aqueous vapor and small amount of inert gas, such as Helium (He) and Argon (Ar) etc. Besides, there are many by-products in the process of refining oil from oil shale, the exhaust gas can be used as gas fuel like coal gas.
- Place of Origin: Shandong Jinan
- Brand Name: gas generator
- Model Number: LH-400GFY,LH-500GFY
Requirements for shale gas
Within 1m from gas intake valve
Shale gas temperature≤40℃
Pressure of oil shale gas:3—10kap,rate of pressure change≤1kpa/s;
H2S≤20mg/Nm3;
NH3≤20mg/Nm3;
Tar content≤50mg/Nm3;
Impurity particle size≤5μm, impurity content≤30mg/Nm3;
Moisture content≤40g/Nm3;
Gas heat value≥4.2MJ/ Nm3;
If fuel gas contains higher quantity of sulfur and ammonia, it not only corrodes the pole of spark plug seriously, but also increases the acid value of lubricant oil, which corrodes internal parts of genset and corrodes the genset with precipitates.

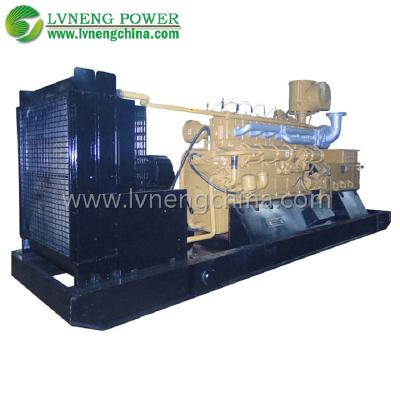

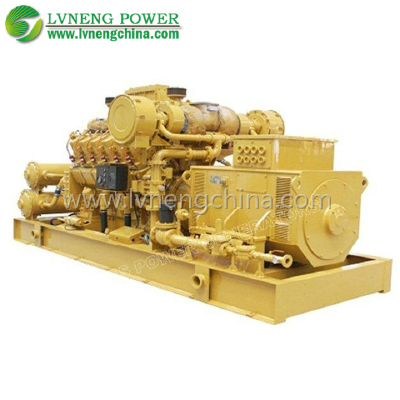

Main specification of 400KW/500KW shale gas generator set：
Model NO. | LH-400GFY | LH-500GFY |
Engine NO. | 12V190DT-2 | 12V190ZLDT-2 |
Gas Mix Type | outside | outside |
Rated Power | 400kw | 500kw |
Prime Power | 320kw | 400kw |
Rated Voltage | 400V/230V | 400V/230V |
Phase | 3 phase, 4 wire | 3 phase, 4 wire |
Rated Frequency | 50Hz | 50Hz |
Rated Speed | 1000r/min | 1000r/min |
Rated Power Factor | 0.8 | 0.8 |
Rated Current | 720A | 902A |
Steady Voltage Adjusting Rate | ≤±2％ | ≤±2％ |
Transient voltage adjusting rate | ≤±10％ | ≤±10％ |
Voltage Stable time | ≤1S | ≤1S |
Fluctuation ratio of voltage | ≤±0.5％ | ≤±0.5％ |
Steady frequency adjusting rate | ≤0.5% | ≤0.5% |
Transient frequency adjusting rate | ≤±10% | ≤±10% |
Frequency Recovery Time | ≤3s | ≤3s |
Frequency Fluctuation Rate | ≤0.5% | ≤0.5% |
Voltage regulating Rate | 95-105% | 95-105% |
Heat Consumption | ≤11.38mj/kw.h | ≤11.38mj/kw.h |
Lubricant Consumption | 1.0~1.63g/kw.h | 1.0~1.63g/kw.h |
Gas Pressure | 3-20kpa | 3-20kpa |
Cylinder Number | V shape, 12 cylinders | V shape, 12 cylinders |
Cylinder Diameter | 190 mm | 190 mm |
Stork | 210 mm | 210 mm |
Starting Mode | 24 V electric motor | 24 V electric motor |
Overhaul Period | ≥30000 h | ≥30000 h |
Noise | ≤105 dB(A) | ≤105 dB(A) |
Aspiration Mode | Naturally aspirated | Supercharging, inter-cooling |
Ignition Mode | Spark plug | Spark plug |
Pressure Regulation Mode | Automatic pressure regulation | Automatic pressure regulation |
Speed Regulation Mode | Electronic speed regulation | Electronic speed regulation |
Lubrication Mode | Pressure and splash lubrication | Pressure and splash lubrication |
Cooling Mode | Closed / open cooling | Closed / open cooling |
Exhaust Temperature | ≤650 ℃ | ≤650 ℃ |
Displacement | 71.45 L | 71.45 L |
Size（mm） | 6000×1970×2732 | 6000×1970×2732 |
Genset Weight（kg） | 11000 | 11500 |
