- Place of Origin: ZHANG QIU
- Brand Name: diesel generator
- Model Number: 6190

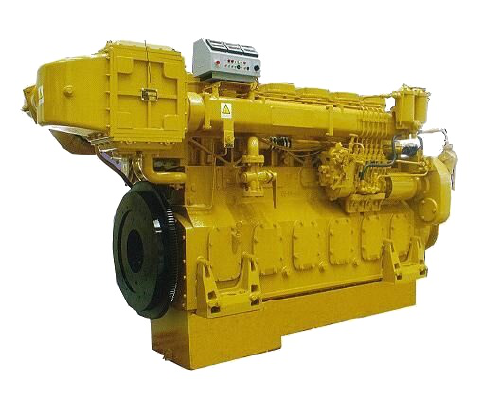

Inline type diesel engine is a new developed type of diesel engine which meets the demand of current market. In its designing, we introduced world’s advanced designing concept and adopted advanced technology. We have a full consideration of economical efficiency, reliability, adaptability and maintenance, and with new technique and new structure, the reliability, economical efficiency, power rate and dynamic property are obviously improved. It keeps the systematization and generalization of 190 series diesel engine, playing a leading role in domestic industry of this field.
6 cylinder engine of inline type has developed three brands of general type engine, strengthen type engine for left and right Propeller (G series) and B series engine for left and right Propeller. Besides using in marine fishing, ship transportation, this diesel engine can be used inland generation and construction machinery etc.
Main technical parameters
Cylinder number and arrangement | 6 cylinders, inline |
Cylinder Diameter | 190mm |
Piston stroke | 210mm |
Displacement | 35.73L |
Compression ratio | 14.5:1 |
Fuel oil consumption (full load) | ≤209g/kw•h |
Lubricant oil consumption (g/kw•h) | ≤1.6g/kw•h |
Model | Four stroke, direct injection,water-cooled,charging and inter cooling |
starting system | Electric motor, pneumatic motor, |
Minimum stable idle speed (r/min) | 600 r/min |
Exhaust temperature(℃ before turbo) | ≤600℃ |
Outlet water temperature | ≤85±2℃ |
Engine oil temperature(in oil pan) | ≤90℃ |
Cooling mode | Forced cooling |
Crankshaft rotation | counterclockwise (face output terminal) |
Lubricant Mode | Pressure and splash lubricant |
- Place of Origin: ZHANG QIU
- Brand Name: diesel generator
- Model Number: 6190
Main technical specifications
MODEL NO. | Rated power(kw) | Rated speed(r/min) | Overall dimension L×W×H(mm) | N.W(kg) |
6190ZLC | 450 | 1450 | 2990×1243×1763 | 3960 |
6190ZLC-1 | 400 | 1200 | 2990×1243×1763 | 3960 |
6190ZLC-2 | 330 | 1000 | 2990×1243×1763 | 3960 |
6190ZLC-3 | 400 | 1300 | 2990×1243×1763 | 3960 |
B6190ZLC | 450 | 1450 | 3000×1193×1643 | 3960 |
B6190ZLC-1 | 400 | 1200 | 2300×1193×1643 | 3960 |
B6190ZLC-2 | 330 | 1000 | 2300×1193×1643 | 3960 |
B6190ZLC-3 | 400 | 1300 | 2300×1193×1643 | 3960 |
G6190ZLC | 540 | 1450 | 2995×1133×1754 | 3960 |
G6190ZLC-1 | 480 | 1300 | 2995×1133×1754 | 3960 |
G6190ZLC-2 | 380 | 1000 | 2995×1133×1754 | 3960 |
G6190ZLC-1 | 450 | 1200 | 2995×1133×1754 | 3960 |
Remarks:
1. The variant engines, first letter of this model no are B and G, so we called them B type engine and G type engine for short, otherwise we call it basic type if there is no letter in its model no.
2. The standard environment for rated power as below: atmospheric pressure is 100kpa, ambient temperature is 25℃, and inlet water temperature of intercooler is 25℃. If the environment doesn't accord with the above provisions, power of diesel engine should be adjusted according to GB1105.1-87.
